//发送交易信息的结构体
type SendTxArgs struct {
	From     common.Address  `json:"from"`     //发送人
	To       *common.Address `json:"to"`       //接收地址
	Gas      *hexutil.Uint64 `json:"gas"`      //gas
	GasPrice *hexutil.Big    `json:"gasPrice"` //gasprice
	Value    *hexutil.Big    `json:"value"`    //交易的值
	Nonce    *hexutil.Uint64 `json:"nonce"`    //交易的nonce
	// We accept "data" and "input" for backwards-compatibility reasons. "input" is the
	// newer name and should be preferred by clients.
	Data  *hexutil.Bytes `json:"data"`
	Input *hexutil.Bytes `json:"input"`
}

func (s *PublicTransactionPoolAPI) SendTransaction(ctx context.Context, args SendTxArgs) (common.Hash, error) {
	account := accounts.Account{Address: args.From}
	wallet, err := s.b.AccountManager().Find(account)
	if err != nil {
		return common.Hash{}, err
	}
	if args.Nonce == nil {
		// Hold the addresse's mutex around signing to prevent concurrent assignment of
		// the same nonce to multiple accounts.
		s.nonceLock.LockAddr(args.From)
		defer s.nonceLock.UnlockAddr(args.From)
	}

	if err := args.setDefaults(ctx, s.b); err != nil {
		return common.Hash{}, err
	}

	//将当前的交易信息生成交易信息
	tx := args.toTransaction()
	var chainID *big.Int //获取当前区块链的ID
	if config := s.b.ChainConfig(); config.IsEIP155(s.b.CurrentBlock().Number()) {
		chainID = config.ChainID
	}
	//对当前的交易进行签名
	signed, err := wallet.SignTx(account, tx, chainID)
	if err != nil {
		return common.Hash{}, err
	}
	return submitTransaction(ctx, s.b, signed)
}

/**
以太坊交易的结构体
*/
type Transaction struct {
	data txdata //交易的数据
	// caches
	hash atomic.Value
	size atomic.Value
	from atomic.Value
}
type txdata struct {
	AccountNonce uint64          `json:"nonce"    gencodec:"required"` //发送者发送交易数的计数
	Price        *big.Int        `json:"gasPrice" gencodec:"required"` //发送者愿意支付执行交易所需的每个gas的Wei数量
	GasLimit     uint64          `json:"gas"      gencodec:"required"` //发送者愿意为执行交易支付gas数量的最大值。这个数量被设置之后在任何计算完成之前就会被提前扣掉
	Recipient    *common.Address `json:"to"       rlp:"nil"`           // nil means contract creation 所使用的接收人的地址，如果为空的话，这说明是使用合约地址
	Amount       *big.Int        `json:"value"    gencodec:"required"` // 从发送者转移到接收者的Wei数量。在合约创建交易中，value作为新建合约账户的开始余额
	Payload      []byte          `json:"input"    gencodec:"required"` //在调用合约函数时input中保存的是合约函数的名称及参数，在部署合约时input中保持的是合约的abi,data及合约构造函数的参数
	// Signature values
	V *big.Int `json:"v" gencodec:"required"` //用于标识交易时产生的签名
	R *big.Int `json:"r" gencodec:"required"` //用于标识交易时产生的签名
	S *big.Int `json:"s" gencodec:"required"` //用于标识交易时产生的签名

	// This is only used when marshaling to JSON.
	Hash *common.Hash `json:"hash" rlp:"-"` //当前交易的hash
	}

/**
利用发送的信息生成新的交易
*/
func (args *SendTxArgs) toTransaction() *types.Transaction {
	var input []byte
	if args.Data != nil {
		input = *args.Data
	} else if args.Input != nil {
		input = *args.Input
	}
	if args.To == nil {
		return types.NewContractCreation(uint64(*args.Nonce), (*big.Int)(args.Value), uint64(*args.Gas), (*big.Int)(args.GasPrice), input)
	}
	return types.NewTransaction(uint64(*args.Nonce), *args.To, (*big.Int)(args.Value), uint64(*args.Gas), (*big.Int)(args.GasPrice), input)
}

func (ks *KeyStore) SignTx(a accounts.Account, tx *types.Transaction, chainID *big.Int) (*types.Transaction, error) {
	// Look up the key to sign with and abort if it cannot be found
	ks.mu.RLock()
	defer ks.mu.RUnlock()
	unlockedKey, found := ks.unlocked[a.Address]
	if !found {
		return nil, ErrLocked
	}
	// Depending on the presence of the chain ID, sign with EIP155 or homestead
	if chainID != nil {
		return types.SignTx(tx, types.NewEIP155Signer(chainID), unlockedKey.PrivateKey)
	}
	return types.SignTx(tx, types.HomesteadSigner{}, unlockedKey.PrivateKey)
}

func SignTx(tx *Transaction, s Signer, prv *ecdsa.PrivateKey) (*Transaction, error) {
	h := s.Hash(tx)
	sig, err := crypto.Sign(h[:], prv)
	if err != nil {
		return nil, err
	}
	return tx.WithSignature(s, sig)

func (tx *Transaction) WithSignature(signer Signer, sig []byte) (*Transaction, error) {
	r, s, v, err := signer.SignatureValues(tx, sig)
	if err != nil {
		return nil, err
	}
	cpy := &Transaction{data: tx.data}
	cpy.data.R, cpy.data.S, cpy.data.V = r, s, v
	return cpy, nil

func (fs FrontierSigner) SignatureValues(tx *Transaction, sig []byte) (r, s, v *big.Int, err error) {
	if len(sig) != 65 {
		panic(fmt.Sprintf("wrong size for signature: got %d, want 65", len(sig)))
	}
	r = new(big.Int).SetBytes(sig[:32])
	s = new(big.Int).SetBytes(sig[32:64])
	v = new(big.Int).SetBytes([]byte{sig[64] + 27})
	return r, s, v, nil
}

/**
提交当前的交易
parama:执行交易的上下文，交易的接口，交易
return 交易的hash
*/
func submitTransaction(ctx context.Context, b Backend, tx *types.Transaction) (common.Hash, error) {
	if err := b.SendTx(ctx, tx); err != nil { //发送交易
		return common.Hash{}, err
	}
	if tx.To() == nil { //如果TO==nil，则为合约账户
		//
		signer := types.MakeSigner(b.ChainConfig(), b.CurrentBlock().Number())
		from, err := types.Sender(signer, tx)
		if err != nil {
			return common.Hash{}, err
		}
		addr := crypto.CreateAddress(from, tx.Nonce()) //创建合约账号地址
		log.Info("Submitted contract creation", "fullhash", tx.Hash().Hex(), "contract", addr.Hex())
	} else {
		log.Info("Submitted transaction", "fullhash", tx.Hash().Hex(), "recipient", tx.To())
	}
	return tx.Hash(), nil
}

func (pool *TxPool) add(tx *types.Transaction, local bool) (bool, error) {
	// If the transaction is already known, discard it
	hash := tx.Hash()
	if pool.all[hash] != nil {
		log.Trace("Discarding already known transaction", "hash", hash)
		return false, fmt.Errorf("known transaction: %x", hash)
	}
	// If the transaction fails basic validation, discard it
	// 如果交易不能通过基本的验证,那么丢弃它
	if err := pool.validateTx(tx, local); err != nil {
		log.Trace("Discarding invalid transaction", "hash", hash, "err", err)
		invalidTxCounter.Inc(1)
		return false, err
	}
	// If the transaction pool is full, discard underpriced transactions
	// 如果交易池满了. 那么删除一些低价的交易.
	if uint64(len(pool.all)) >= pool.config.GlobalSlots+pool.config.GlobalQueue {
		// If the new transaction is underpriced, don't accept it
		// 如果新交易本身就是低价的，不接收
		if !local && pool.priced.Underpriced(tx, pool.locals) {
			log.Trace("Discarding underpriced transaction", "hash", hash, "price", tx.GasPrice())
			underpricedTxCounter.Inc(1)
			return false, ErrUnderpriced
		}
		// New transaction is better than our worse ones, make room for it
		// 否则删除低价的池给他腾空间
		drop := pool.priced.Discard(len(pool.all)-int(pool.config.GlobalSlots+pool.config.GlobalQueue-1), pool.locals)
		for _, tx := range drop {
			log.Trace("Discarding freshly underpriced transaction", "hash", tx.Hash(), "price", tx.GasPrice())
			underpricedTxCounter.Inc(1)
			pool.removeTx(tx.Hash(), false)
		}
	}
	// If the transaction is replacing an already pending one, do directly
	//验证交易签名
	from, _ := types.Sender(pool.signer, tx) // already validated
	if list := pool.pending[from]; list != nil && list.Overlaps(tx) {
		// Nonce already pending, check if required price bump is met
		// 如果交易对应的Nonce已经在pending队列了,那么看是否能够替换.
		inserted, old := list.Add(tx, pool.config.PriceBump)
		if !inserted {
			pendingDiscardCounter.Inc(1)
			return false, ErrReplaceUnderpriced
		}
		// New transaction is better, replace old one
		if old != nil {
			delete(pool.all, old.Hash())
			pool.priced.Removed()
			pendingReplaceCounter.Inc(1)
		}
		pool.all[tx.Hash()] = tx
		pool.priced.Put(tx)
		pool.journalTx(from, tx)

		log.Trace("Pooled new executable transaction", "hash", hash, "from", from, "to", tx.To())

		// We've directly injected a replacement transaction, notify subsystems
		//直接注入了一个替换事务，通知子系统
		go pool.txFeed.Send(TxPreEvent{tx})

		return old != nil, nil
	}
	// New transaction isn't replacing a pending one, push into queue
	// 新交易不能替换pending里面的任意一个交易,那么把他push到futuren 队列里面.
	replace, err := pool.enqueueTx(hash, tx)
	if err != nil {
		return false, err
	}
	// Mark local addresses and journal local transactions
	if local {
		pool.locals.add(from)
	}
	// 如果是本地的交易,会被记录进入journalTx
	pool.journalTx(from, tx) //存到硬盘

	log.Trace("Pooled new future transaction", "hash", hash, "from", from, "to", tx.To())
	return replace, nil
}

// validateTx 使用一致性规则来检查一个交易是否有效,并采用本地节点的一些启发式的限制.
func (pool *TxPool) validateTx(tx *types.Transaction, local bool) error {
	// Heuristic limit, reject transactions over 32KB to prevent DOS attacks
	if tx.Size() > 32*1024 {
		return ErrOversizedData
	}
	// Transactions can't be negative. This may never happen using RLP decoded
	// transactions but may occur if you create a transaction using the RPC.
	if tx.Value().Sign() < 0 {
		return ErrNegativeValue
	}
	// Ensure the transaction doesn't exceed the current block limit gas.
	if pool.currentMaxGas < tx.Gas() {
		return ErrGasLimit
	}
	// Make sure the transaction is signed properly
	// 确保交易被正确签名.
	from, err := types.Sender(pool.signer, tx)
	if err != nil {
		return ErrInvalidSender
	}
	// Drop non-local transactions under our own minimal accepted gas price
	// 如果不是本地的交易,并且GasPrice低于我们的设置,那么也不会接收.
	local = local || pool.locals.contains(from) // account may be local even if the transaction arrived from the network
	if !local && pool.gasPrice.Cmp(tx.GasPrice()) > 0 {
		return ErrUnderpriced
	}
	// Ensure the transaction adheres to nonce ordering
	// 确保交易遵守了Nonce的顺序,账户的nonce
	if pool.currentState.GetNonce(from) > tx.Nonce() {
		return ErrNonceTooLow
	}
	// Transactor should have enough funds to cover the costs
	// cost == V + GP * GL
	// 确保用户有足够的余额来支付.
	if pool.currentState.GetBalance(from).Cmp(tx.Cost()) < 0 {
		return ErrInsufficientFunds
	}

	intrGas, err := IntrinsicGas(tx.Data(), tx.To() == nil, pool.homestead)
	if err != nil {
		return err
	}
	// 如果交易是一个合约创建或者调用. 那么看看是否有足够的 初始Gas.
	if tx.Gas() < intrGas {
		return ErrIntrinsicGas
	}
	return nil
}

// 将一个新的交易插入到future queue
func (pool *TxPool) enqueueTx(hash common.Hash, tx *types.Transaction) (bool, error) {
	// Try to insert the transaction into the future queue
	from, _ := types.Sender(pool.signer, tx) // already validated 验证签名
	if pool.queue[from] == nil {
		pool.queue[from] = newTxList(false) //如果pool.queue不存在当前地址
	}
	inserted, old := pool.queue[from].Add(tx, pool.config.PriceBump)
	if !inserted {
		// An older transaction was better, discard this
		queuedDiscardCounter.Inc(1)
		return false, ErrReplaceUnderpriced
	}
	// Discard any previous transaction and mark this
	if old != nil {
		delete(pool.all, old.Hash())
		pool.priced.Removed()
		queuedReplaceCounter.Inc(1)
	}
	if pool.all[hash] == nil {
		pool.all[hash] = tx
		pool.priced.Put(tx)
	}
	return old != nil, nil
}

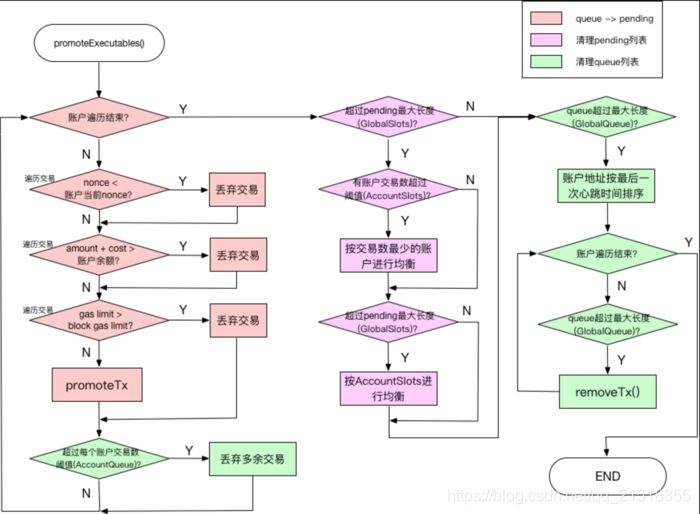

// 通过这个处理过程，所有的无效的交易(nonce太低，余额不足)会被删除。
func (pool *TxPool) promoteExecutables(accounts []common.Address) {
	// Gather all the accounts potentially needing updates
	// accounts存储了所有潜在需要更新的账户。 如果账户传入为nil，代表所有已知的账户。
	if accounts == nil {
		accounts = make([]common.Address, 0, len(pool.queue))
		for addr := range pool.queue {
			accounts = append(accounts, addr)
		}
	}
	// Iterate over all accounts and promote any executable transactions
	for _, addr := range accounts {
		list := pool.queue[addr]
		if list == nil {
			continue // Just in case someone calls with a non existing account
		}
		// Drop all transactions that are deemed too old (low nonce)
		// 删除所有的nonce太低的交易
		for _, tx := range list.Forward(pool.currentState.GetNonce(addr)) {
			hash := tx.Hash()
			log.Trace("Removed old queued transaction", "hash", hash)
			delete(pool.all, hash)
			pool.priced.Removed()
		}
		// Drop all transactions that are too costly (low balance or out of gas)
		// 删除所有余额不足的交易。
		drops, _ := list.Filter(pool.currentState.GetBalance(addr), pool.currentMaxGas)
		for _, tx := range drops {
			hash := tx.Hash()
			log.Trace("Removed unpayable queued transaction", "hash", hash)
			delete(pool.all, hash)
			pool.priced.Removed()
			queuedNofundsCounter.Inc(1)
		}
		// Gather all executable transactions and promote them
		// 得到所有的可以执行的交易，并promoteTx加入pending
		for _, tx := range list.Ready(pool.pendingState.GetNonce(addr)) {
			hash := tx.Hash()
			log.Trace("Promoting queued transaction", "hash", hash)
			pool.promoteTx(addr, hash, tx)
		}
		// Drop all transactions over the allowed limit
		// 删除所有超过限制的交易
		if !pool.locals.contains(addr) {
			for _, tx := range list.Cap(int(pool.config.AccountQueue)) {
				hash := tx.Hash()
				delete(pool.all, hash)
				pool.priced.Removed()
				queuedRateLimitCounter.Inc(1)
				log.Trace("Removed cap-exceeding queued transaction", "hash", hash)
			}
		}
		// Delete the entire queue entry if it became empty.
		if list.Empty() {
			delete(pool.queue, addr)
		}
	}
	// If the pending limit is overflown, start equalizing allowances
	pending := uint64(0)
	for _, list := range pool.pending {
		pending += uint64(list.Len())
	}
	// 如果pending的总数超过系统的配置。
	if pending > pool.config.GlobalSlots {
		pendingBeforeCap := pending
		// Assemble a spam order to penalize large transactors first
		spammers := prque.New()
		for addr, list := range pool.pending {
			// Only evict transactions from high rollers
			// 首先把所有大于AccountSlots最小值的账户记录下来， 会从这些账户里面剔除一些交易。
			// 注意spammers是一个优先级队列，也就是说是按照交易的多少从大到小排序的。
			if !pool.locals.contains(addr) && uint64(list.Len()) > pool.config.AccountSlots {
				spammers.Push(addr, float32(list.Len()))
			}
		}
		// Gradually drop transactions from offenders
		offenders := []common.Address{}
		for pending > pool.config.GlobalSlots && !spammers.Empty() {
			// Retrieve the next offender if not local address
			offender, _ := spammers.Pop()
			offenders = append(offenders, offender.(common.Address))

			// Equalize balances until all the same or below threshold
			if len(offenders) > 1 { // 第一次进入这个循环的时候， offenders队列里面有交易数量最大的两个账户
				// Calculate the equalization threshold for all current offenders
				// 把最后加入的账户的交易数量当成本次的阈值t
				threshold := pool.pending[offender.(common.Address)].Len()

				// Iteratively reduce all offenders until below limit or threshold reached
				// 遍历直到pending有效，或者是倒数第二个的交易数量等于最后一个的交易数量
				for pending > pool.config.GlobalSlots && pool.pending[offenders[len(offenders)-2]].Len() > threshold {
					// 遍历除了最后一个账户以外的所有账户， 把他们的交易数量减去1.
					for i := 0; i < len(offenders)-1; i++ {
						list := pool.pending[offenders[i]]
						for _, tx := range list.Cap(list.Len() - 1) {
							// Drop the transaction from the global pools too
							hash := tx.Hash()
							delete(pool.all, hash)
							pool.priced.Removed()

							// Update the account nonce to the dropped transaction
							if nonce := tx.Nonce(); pool.pendingState.GetNonce(offenders[i]) > nonce {
								pool.pendingState.SetNonce(offenders[i], nonce)
							}
							log.Trace("Removed fairness-exceeding pending transaction", "hash", hash)
						}
						pending--
					}
				}
			}
		}
		// If still above threshold, reduce to limit or min allowance
		if pending > pool.config.GlobalSlots && len(offenders) > 0 {
			for pending > pool.config.GlobalSlots && uint64(pool.pending[offenders[len(offenders)-1]].Len()) > pool.config.AccountSlots {
				for _, addr := range offenders {
					list := pool.pending[addr]
					for _, tx := range list.Cap(list.Len() - 1) {
						// Drop the transaction from the global pools too
						hash := tx.Hash()
						delete(pool.all, hash)
						pool.priced.Removed()

						// Update the account nonce to the dropped transaction
						if nonce := tx.Nonce(); pool.pendingState.GetNonce(addr) > nonce {
							pool.pendingState.SetNonce(addr, nonce)
						}
						log.Trace("Removed fairness-exceeding pending transaction", "hash", hash)
					}
					pending--
				}
			}
		}
		pendingRateLimitCounter.Inc(int64(pendingBeforeCap - pending))
	}
	// If we've queued more transactions than the hard limit, drop oldest ones
	queued := uint64(0)
	for _, list := range pool.queue {
		queued += uint64(list.Len())
	}
	if queued > pool.config.GlobalQueue {
		// Sort all accounts with queued transactions by heartbeat
		addresses := make(addresssByHeartbeat, 0, len(pool.queue))
		for addr := range pool.queue {
			if !pool.locals.contains(addr) { // don't drop locals
				addresses = append(addresses, addressByHeartbeat{addr, pool.beats[addr]})
			}
		}
		sort.Sort(addresses)

		// Drop transactions until the total is below the limit or only locals remain
		for drop := queued - pool.config.GlobalQueue; drop > 0 && len(addresses) > 0; {
			addr := addresses[len(addresses)-1]
			list := pool.queue[addr.address]

			addresses = addresses[:len(addresses)-1]

			// Drop all transactions if they are less than the overflow
			if size := uint64(list.Len()); size <= drop {
				for _, tx := range list.Flatten() {
					pool.removeTx(tx.Hash(), true)
				}
				drop -= size
				queuedRateLimitCounter.Inc(int64(size))
				continue
			}
			// Otherwise drop only last few transactions
			txs := list.Flatten()
			for i := len(txs) - 1; i >= 0 && drop > 0; i-- {
				pool.removeTx(txs[i].Hash(), true)
				drop--
				queuedRateLimitCounter.Inc(1)
			}
		}
	}
}

func (pool *TxPool) promoteTx(addr common.Address, hash common.Hash, tx *types.Transaction) {
	// Try to insert the transaction into the pending queue
	if pool.pending[addr] == nil {
		pool.pending[addr] = newTxList(true)
	}
	list := pool.pending[addr]
	inserted, old := list.Add(tx, pool.config.PriceBump)
	if !inserted {
		// An older transaction was better, discard this
		delete(pool.all, hash)
		pool.priced.Removed()
		pendingDiscardCounter.Inc(1)
		return
	}
	// Otherwise discard any previous transaction and mark this
	if old != nil {
		delete(pool.all, old.Hash())
		pool.priced.Removed()
		pendingReplaceCounter.Inc(1)
	}

	// Failsafe to work around direct pending inserts (tests)
	if pool.all[hash] == nil {
	pool.all[hash] = tx
	pool.priced.Put(tx)

	}
	// Set the potentially new pending nonce and notify any subsystems of the new tx
	pool.beats[addr] = time.Now()
	pool.pendingState.SetNonce(addr, tx.Nonce()+1)
	go pool.txFeed.Send(TxPreEvent{tx})

pragma solidity ^0.4.24;


contract  Test {

    string public str ;

    //修饰为payable的函数才可以接收转账
    //不指定payable无法接收
    function test1(string src) public payable {
        str = src;
    }

    function test2(string src) public {
        str = src;
    }

    function getbalance() public view returns(uint256) {
        //this代表当前合约本身
        //balance方法，获取当前合约的余额
        return this.balance;
    }
}
